High Stiffness Reducers

High Stiffness Reducers

Utilizing the gear and reducer manufacturing technologies cultivated since NISSEI foundation, in August 2021 we launched High Stiffness Reducers that employs an eccentric oscillating differential reduction mechanism. This product contributes to higher speeds and compactness of robots and FA equipment and gives greater design freedom to our customers. We will keep expanding our product lineup to meet the diverse needs of our customers.

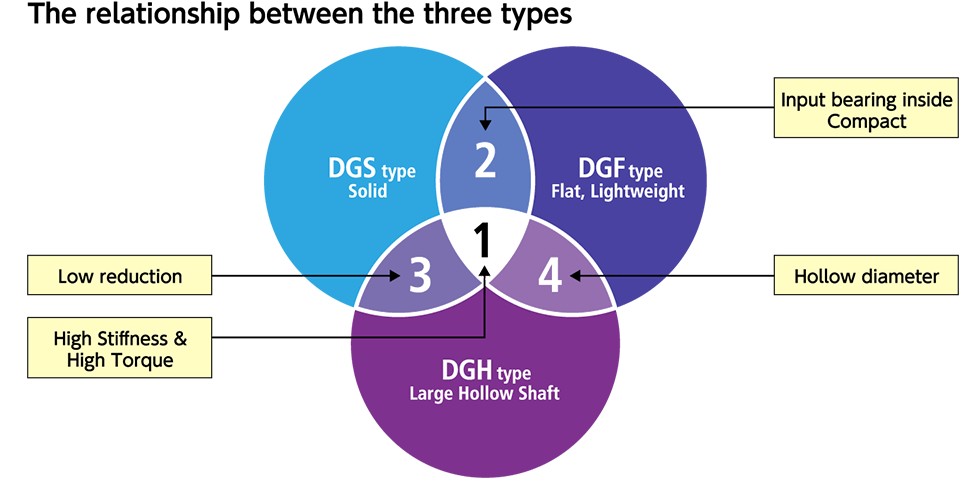

Select from High Stiffness Reducer lineup

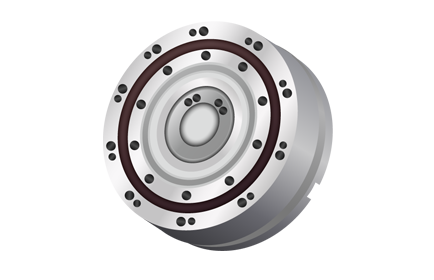

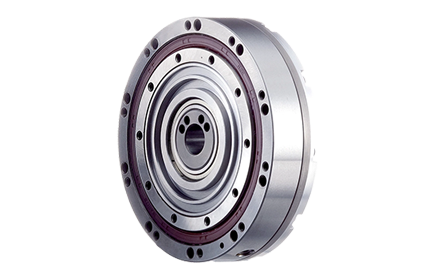

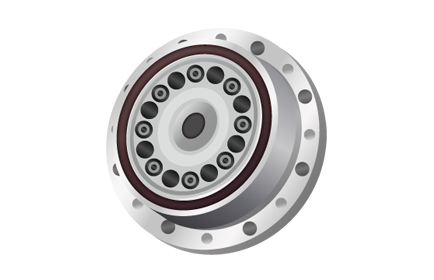

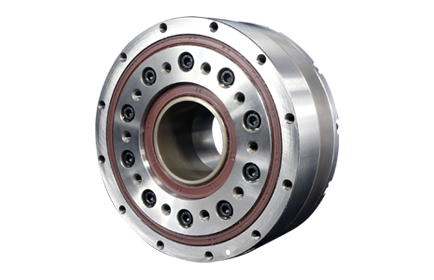

Large Hollow Shaft Type

Compact but can achieve high precision with powerful drive

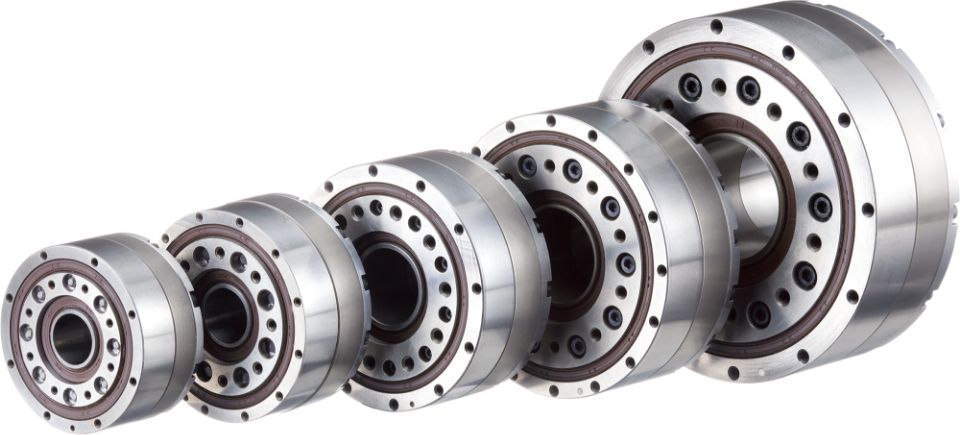

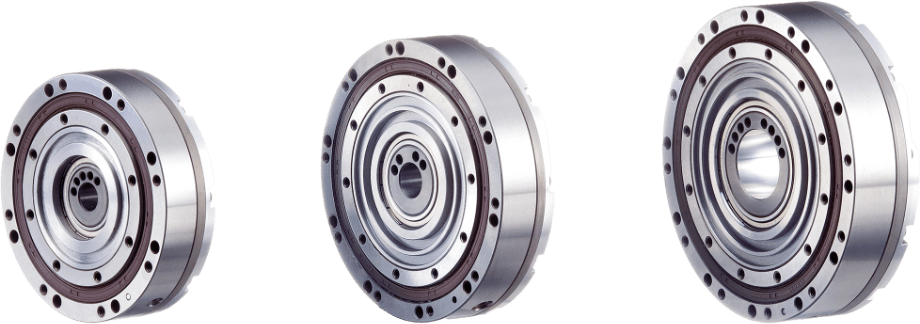

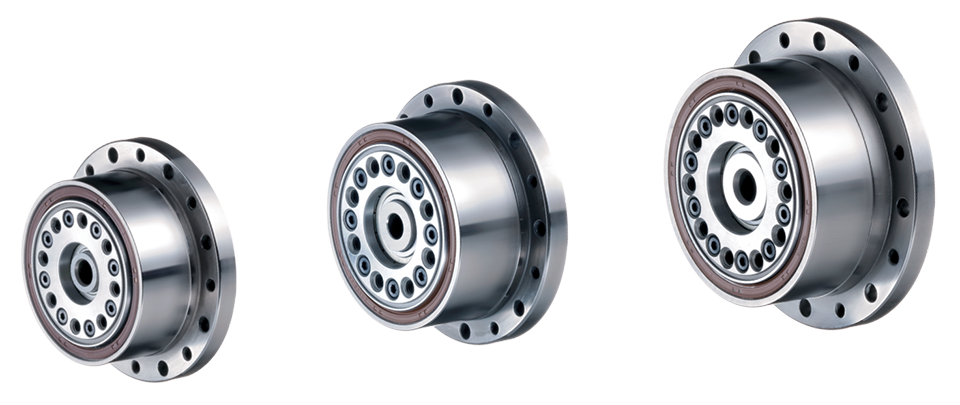

5Frame Sizes
OD: 71mm /81mm /95mm /110mm /142mm
3stage Reduction
1/19, 1/29, 1/59

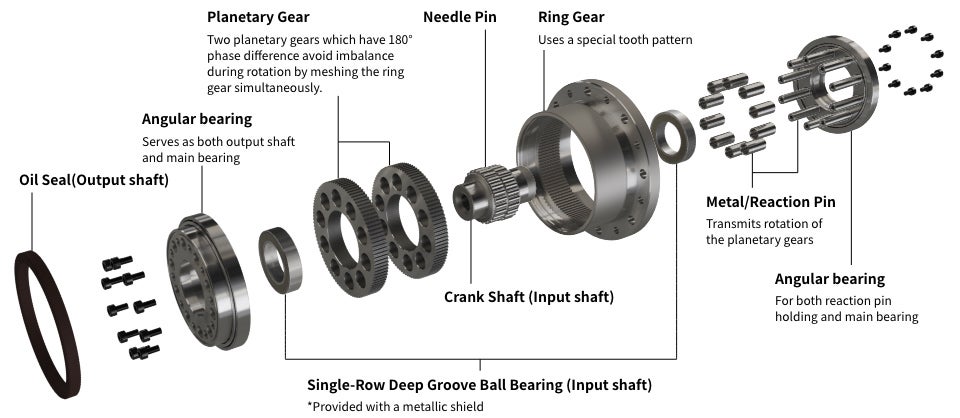

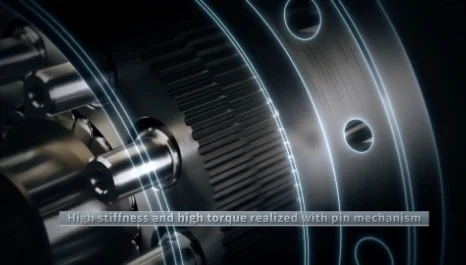

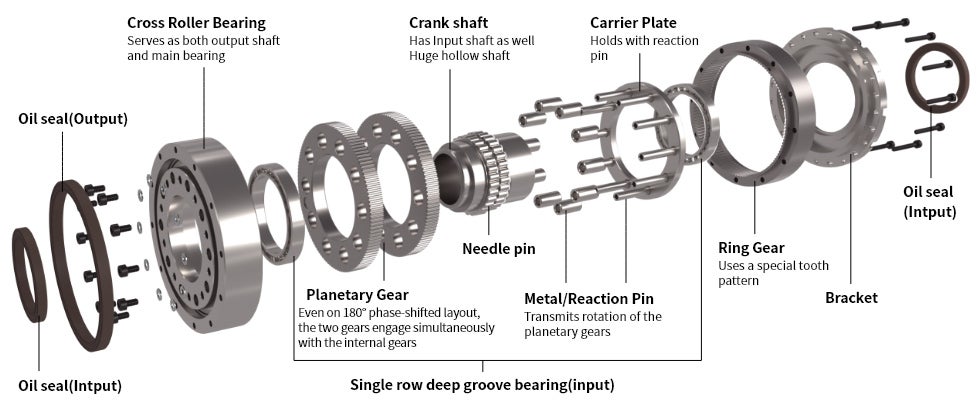

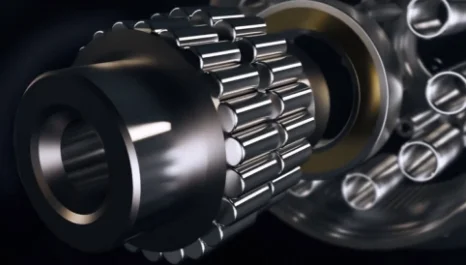

[Structure] A structure with high precision.
  • ・In accordance with the crankshaft (input shaft) rotation, the two planetary gears revolve while autorotating,
    transmitting their movement through the reaction pin and metal to the output cross roller bearing.
  • ・Even with on a single stage gearing , the two planetary gears ( 180° offset ) can phase simultaneously
    and engage with internal gears, avoiding imbalance during rotation.
[Features] Large Hollow Shaft with High Stiffness and High Torque

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and allowable torque. Because the gear engagement ratio remains effectively the same even when the reduction ratio changes, a large torque can be obtained even at a low reduction ratio. In addition, the large hollow diameter makes it easy for wiring, piping, shafts and the like to go through, greatly enhancing the degree of freedom you can enjoy in designing robots and devices. Helps improve the productivity.

Designed for maximum performance.

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and high allowable torque. As well, the cross roller bearing integrated with the output shaft keeps the unit compact while ensuring higher moment stiffness. Even if the reduction Ratio changes, the Meshing does not change so the allowable torque is constant. High torque can be obtained even at low reduction ratios.

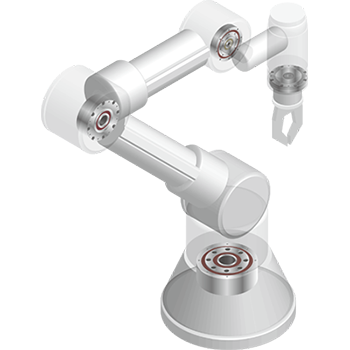

  • Vertically articulated robot

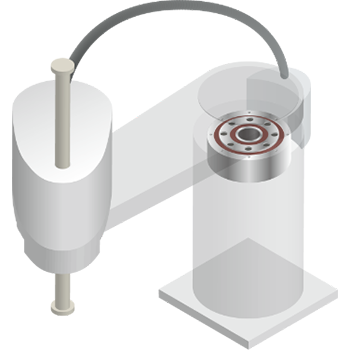

  • SCARA robot

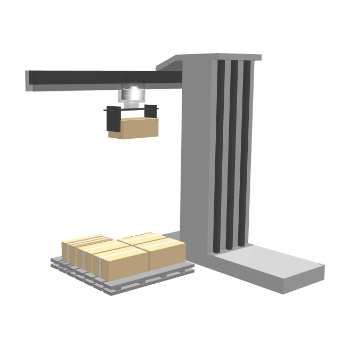

  • Palletizing robot

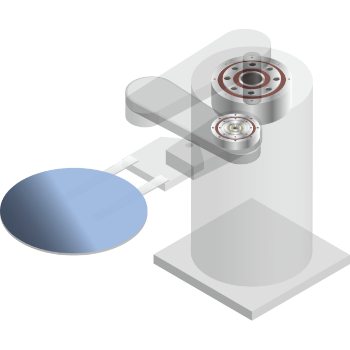

  • Wafer Handling robot

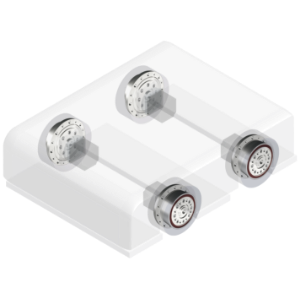

AGV / AMR

Our reducer can make your autonomous mobiles downsized easily, even more, it can serve as in-wheel reducers on wheel axles under condition where they will get impacted directly; such as low-floor or rough roads.

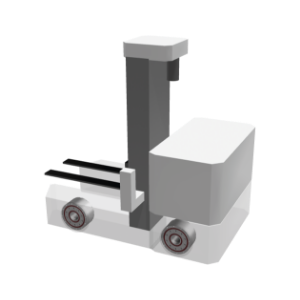

  • AGV

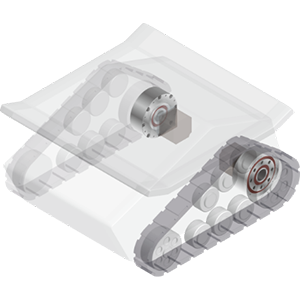

  • UGV
  • AGV

FA devices/Machine tools

Our reducer can contribute to FA/working machine which are required to be downsized by reducing number of components with its high stiffness and high torque.

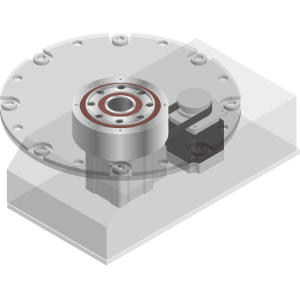

  • Positioner

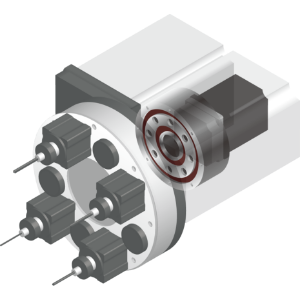

  • Turret indexing system

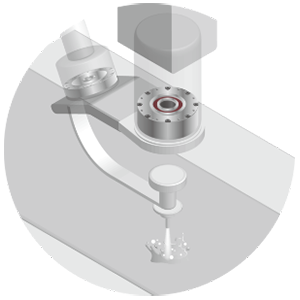

  • Water jet processing machine

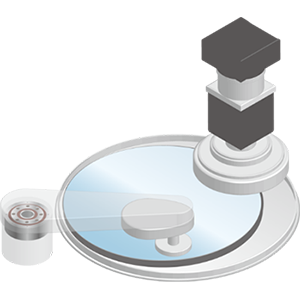

  • CMP device

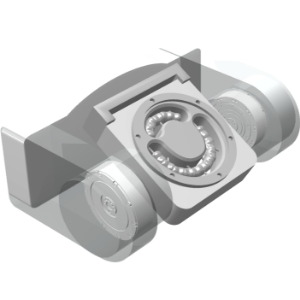

  • Denture processing machine

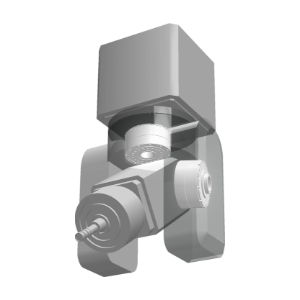

  • Milling head

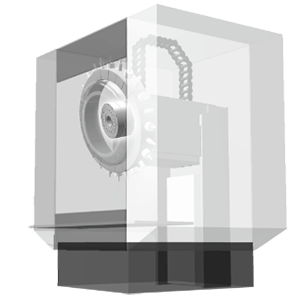

  • Machine tools (Magazine reducer)

Flat and lightweight Type

Flat and lightweight with input bearing inside
3Frame Sizes
OD: 71.5mm /81.5mm /91.5mm
2stage Reduction
1/50, 1/100

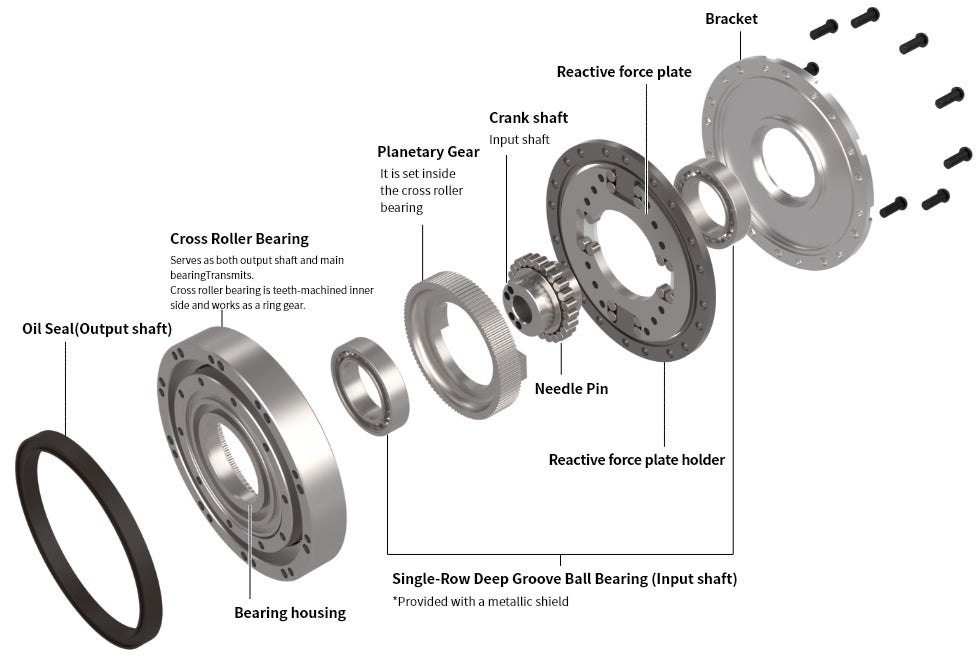

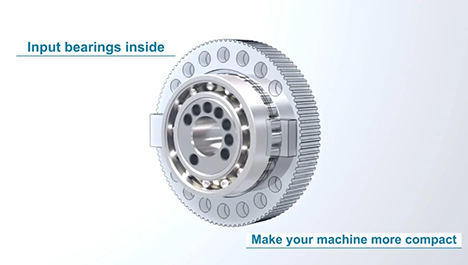

[Structure] Input bearing inside
[Features] Flat and lightweight with input bearing inside

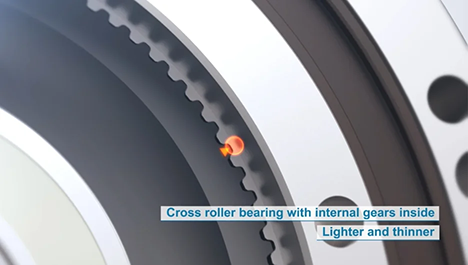

Our reducer can contain input bearing inside even it is already very light and thin. Thus, users can feel how compact and light firmly when designing equipment.

[Features] Large Hollow Shaft with High Stiffness and High Torque

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and allowable torque. Because the gear engagement ratio remains effectively the same even when the reduction ratio changes, a large torque can be obtained even at a low reduction ratio. In addition, the large hollow diameter makes it easy for wiring, piping, shafts and the like to go through, greatly enhancing the degree of freedom you can enjoy in designing robots and devices. Helps improve the productivity.

Designed for maximum performance.

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and high allowable torque. As well, the cross roller bearing integrated with the output shaft keeps the unit compact while ensuring higher moment stiffness. Even if the reduction Ratio changes, the Meshing does not change so the allowable torque is constant. High torque can be obtained even at low reduction ratios.

  • Vertically articulated robot
  • SCARA robot
  • Palletizing robot
  • Wafer Handling robot

AGV / AMR

Our reducer can make your autonomous mobiles downsized easily, even more, it can serve as in-wheel reducers on wheel axles under condition where they will get impacted directly; such as low-floor or rough roads.

  • AGV
  • UGV
  • AGV

FA devices/Machine tools

Our reducer can contribute to FA/working machine which are required to be downsized by reducing number of components with its high stiffness and high torque.

  • Positioner
  • Turret indexing system
  • Water jet processing machine
  • CMP device
  • Denture processing machine
  • Milling head
  • Machine tools (Magazine reducer)

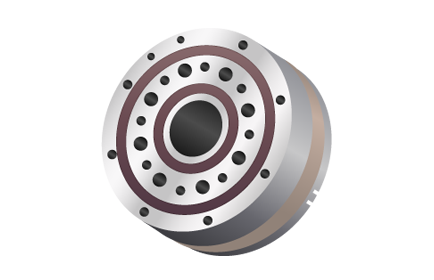

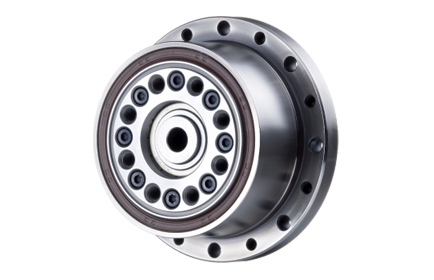

Solid Type

High torque and wide range of reduction ratios
3Frame Sizes
OD: 73mm / 79mm / 93mm
6stage Reduction
1/19・1/29・1/49・1/79・1/99・1/119
*The 1/119 reduction ratio is only available on frame sizes 030 and 050.

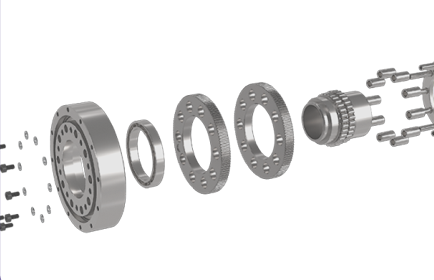

[Structure] High torque, a wide range of reduction ratios, and high stiffness for resistance to impacts.
[Features] A compact and flexible design is possible.

Achieves high precision positioning. High torque, a wide range of reduction ratios, and high stiffness for resistance to impacts. A compact and flexible design is possible.

[Features] Large Hollow Shaft with High Stiffness and High Torque

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and allowable torque. Because the gear engagement ratio remains effectively the same even when the reduction ratio changes, a large torque can be obtained even at a low reduction ratio. In addition, the large hollow diameter makes it easy for wiring, piping, shafts and the like to go through, greatly enhancing the degree of freedom you can enjoy in designing robots and devices. Helps improve the productivity.

Designed for maximum performance.

The use of a differential reducer mechanism (eccentric oscillation type) achieves high torsional rigidity and high allowable torque. As well, the cross roller bearing integrated with the output shaft keeps the unit compact while ensuring higher moment stiffness. Even if the reduction Ratio changes, the Meshing does not change so the allowable torque is constant. High torque can be obtained even at low reduction ratios.

  • Vertically articulated robot
  • SCARA robot
  • Palletizing robot
  • Wafer Handling robot

AGV / AMR

Our reducer can make your autonomous mobiles downsized easily, even more, it can serve as in-wheel reducers on wheel axles under condition where they will get impacted directly; such as low-floor or rough roads.

  • AGV
  • UGV
  • AGV

FA devices/Machine tools

Our reducer can contribute to FA/working machine which are required to be downsized by reducing number of components with its high stiffness and high torque.

  • Positioner
  • Turret indexing system
  • Water jet processing machine
  • CMP device
  • Denture processing machine
  • Milling head
  • Machine tools (Magazine reducer)
